KEY FEATURES
- 6 Neodymium Drivers
- KLARK TEKNIK Spatial Sound Technology
- Built - In Digital Mixer - Comprehensive Remote Control via iPhone / iPad
- Outstanding Sound Dispersion
DESCRIPTION
The INSPIRE iP500 delivers the powerful, high-quality sound and optimised dispersion inspired by our award-winning line array products – in a surprisingly lightweight and easy to use, all-in-one form factor. Thanks to an on-board 3-channel digital mixer and multichannel 600-Watt Class-D amplifier driving a custom-engineered 8" subwoofer and 6 x 2" neodymium drivers, the iP500 is ideally-suited for small to medium-sized performance venues, houses of worship, boardroom presentations, nightclubs, and much more.
Weighing in at a very modest 15 kg (33 lbs), the iP500 is easy to transport and features industry-leading KLARK TEKNIK Digital Sound Processing (DSP), studio-grade stereo reverb, Class-D amplifier and Spatial Sound technologies – plus convenient Bluetooth stereo audio streaming and iPhone/iPad remote control.

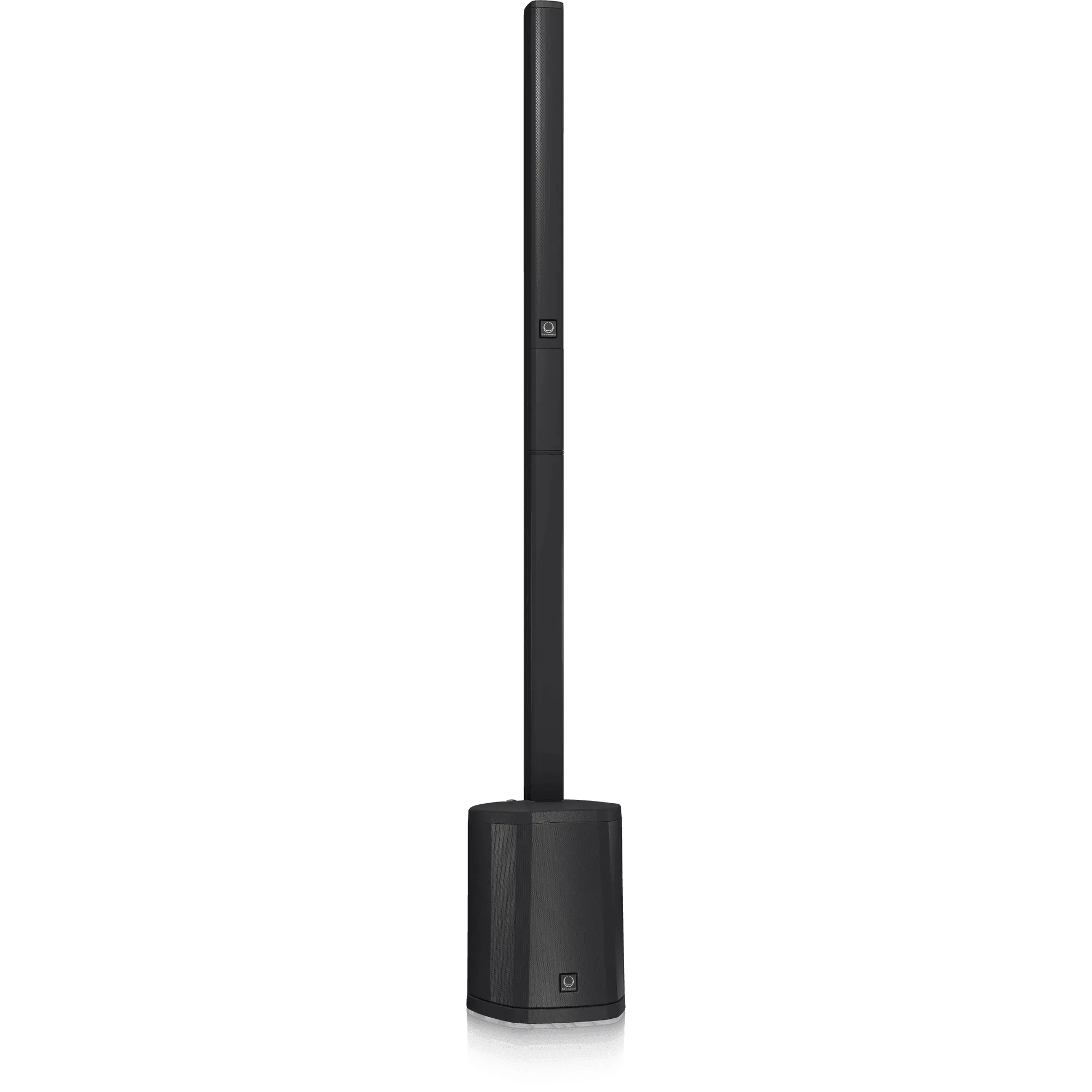

Designed for maximum portability, iP500’s column sections and subwoofer fit neatly into their included carry bags, and setup is fast and easy; just attach the column section(s) to the base and connect your mic or mixer feed and power.
Much like the huge line array systems you’ve experienced at concerts and outdoor festivals (we make those too), the 2" neodymium midrange / extended high-frequency drivers in the iP500 columns are strategically placed to provide up to a 100° horizontal dispersion pattern. Such wide coverage eliminates the need for monitor wedges for the performers and creates a more even, sonically balanced soundscape that covers the entire room.
SPECIFICATIONS
| System | Frequency Response : 65 Hz – 14 kHz ±3 dB l 50 Hz – 16 kHz -10 dB Normal Dispersion : 100° H @ -6 dB points Maximum Sound Pressure Level : 118dB
|
| Amplifier | Maximum Output Power : 600 W Type : LF: Class-D l HF: Class AB Protection : Short circuit, open circuit, thermal |
| Connectors | Input A / B : 2 x combo jack / XLR Sensitivity : 4 dBu Input Impedance : 16 kO unbalanced, 33 kO balanced Link Output : XLR |
| Controls | Hardware : Rotary push-encoder Software : iOS interface via Bluetooth |
| Bluetooth | 4.0 |
| Dimensions | 2006 x 321 x 400 mm (79.0 x12.6 x 15.7") Base : 416 x 321 x 400 mm (16.4 x 12.6 x 15.7") Tower : 918 x 132 x 72 mm(36.1 x 5.2 x 2.8") |
| Weight | 15.1 kg (33.2 lbs) |
